DeepEye-SQLA Software-Engineering-InspiredText-to-SQL Framework

What if generating a correct SQL query is not just a language task, but a software engineering problem? DeepEye-SQL reframes Text-to-SQL through the lens of the Software Development Life Cycle, achieving state-of-the-art performance with a small open-source model.

75.07%

BIRD-Test (Official)

73.5%

BIRD-Dev EX

89.8%

Spider-Test EX

~3B

Active Params

View on GitHub Read Paper

DeepEye-SQL SDLC-inspired framework overview

SDLC-Inspired Four-Phase Pipeline

Boyan Li, Chong Chen, Zhujun Xue, Yinan Mei, Yuyu Luo*

DIAL Lab @ HKUST(GZ)

Scroll to explore

KEY INSIGHT

The Paradigm Shift

Text-to-SQL is not merely a language generation task. Generating a correct SQL query demands structured orchestration and verifiable correctness — just like building software.

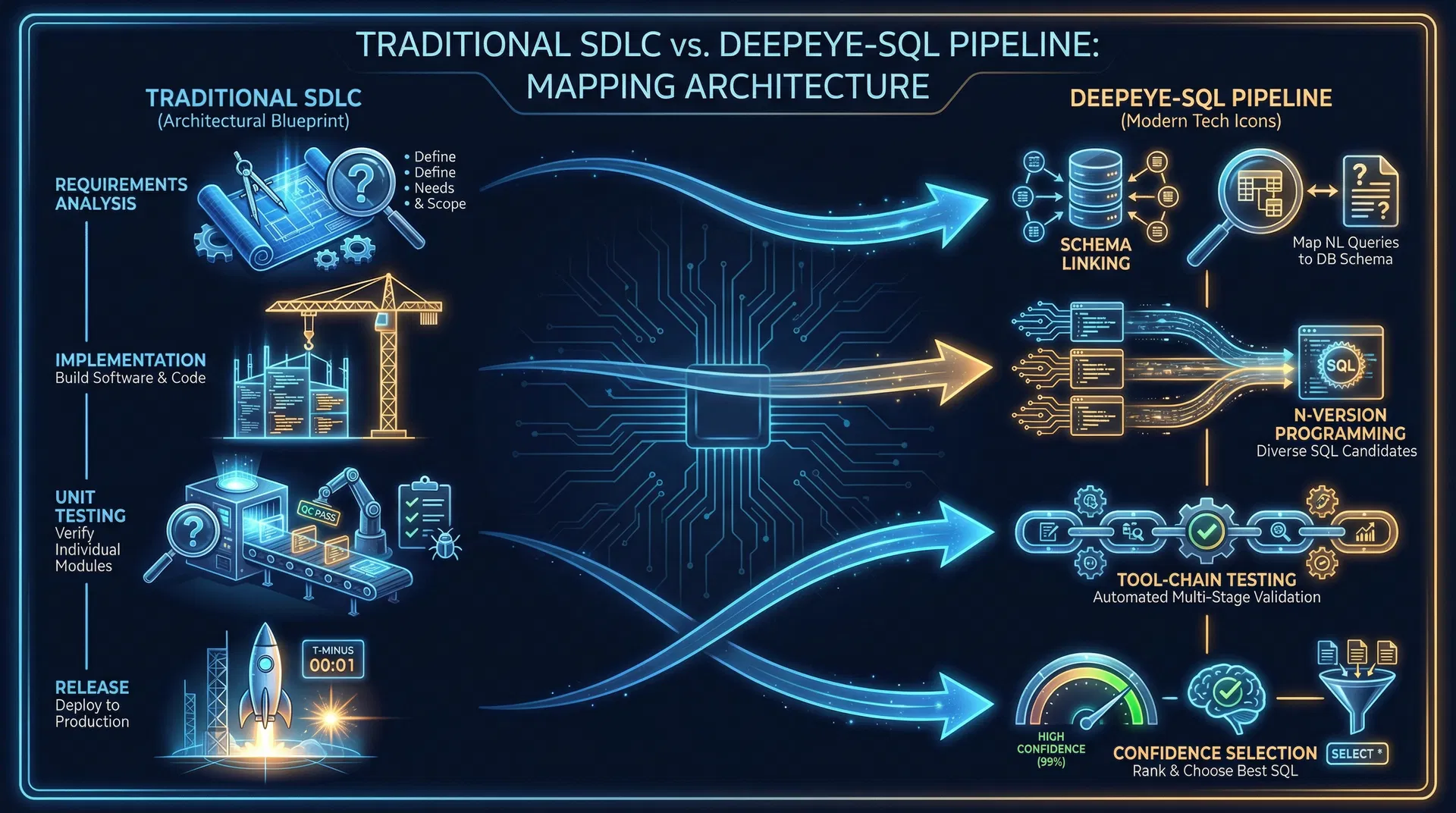

SDLC-Inspired Four-Phase Pipeline: Each phase addresses a specific challenge in Text-to-SQL

Requirements

Schema Linking

Understand what to build by grounding intent in the database schema

C1: Ambiguous requirement inference

Implementation

N-Version SQL

Build multiple independent SQL solutions in parallel for fault tolerance

C2: Insufficient fault tolerance

Unit Testing

Tool-Chain Testing

Verify each SQL with 8 deterministic checkers, not LLM self-refinement

C3: Unreliable verification

Release

Confidence Selection

Ship the best SQL through a confidence-gated quality gate

C4: Uncalibrated confidence

How DeepEye-SQL Differs

Method	Core Paradigm	Verification	SQL Selection	Efficiency
CHESS	Linear Inference	LLM Self-Refinement	Heuristic Majority Voting	High API Cost (Gemini 1.5 Pro)
Alpha-SQL	Search-Centric (MCTS)	Basic Syntax Check	Heuristic Majority Voting	High Inference Latency
OmniSQL	Data-Centric SFT	Basic Syntax Check	Heuristic Majority Voting	High Training Cost
DeepEye-SQL	SE-Lifecycle Centric	Deterministic Unit Testing	Confidence-Aware Selection	Efficient & Training-Free (~3B)

PHASE 1 — REQUIREMENTS

Phase 1Requirements Analysis

Intent Scoping & Semantic Grounding

Before writing any code, a software engineer must fully understand the requirements. Similarly, DeepEye-SQL first scopes the user's intent by grounding the natural language question in the database schema. This phase employs three complementary schema linking strategies to ensure no relevant table or column is missed.

Natural Language Question

"What is the average rating of restaurants in San Francisco that serve Italian food?"

ratingrestaurantsSan FranciscoItalian

Database Schema

50%

coverage

restaurants

idnamecitycuisine_typeprice_range

reviews

idrestaurant_idratingreview_textdate

locations

restaurant_idaddresscitystatezip_code

Strategy Analysis

Direct Schema Linking

LLM analyzes question keywords against schema

LLM identifies 'rating', 'restaurants', and 'reviews' from the question keywords. Misses the 'locations' table which also has city data.

Identified Tables:

restaurantsreviews

Misses: locations table (city column)

Why Three Strategies?

Each strategy has blind spots. Direct linking may miss implicit tables. Reversed linking may hallucinate schema elements. Value-based linking only finds columns with matching values. Their union provides robust, fault-tolerant coverage.

PHASE 2 — IMPLEMENTATION

Phase 2Implementation

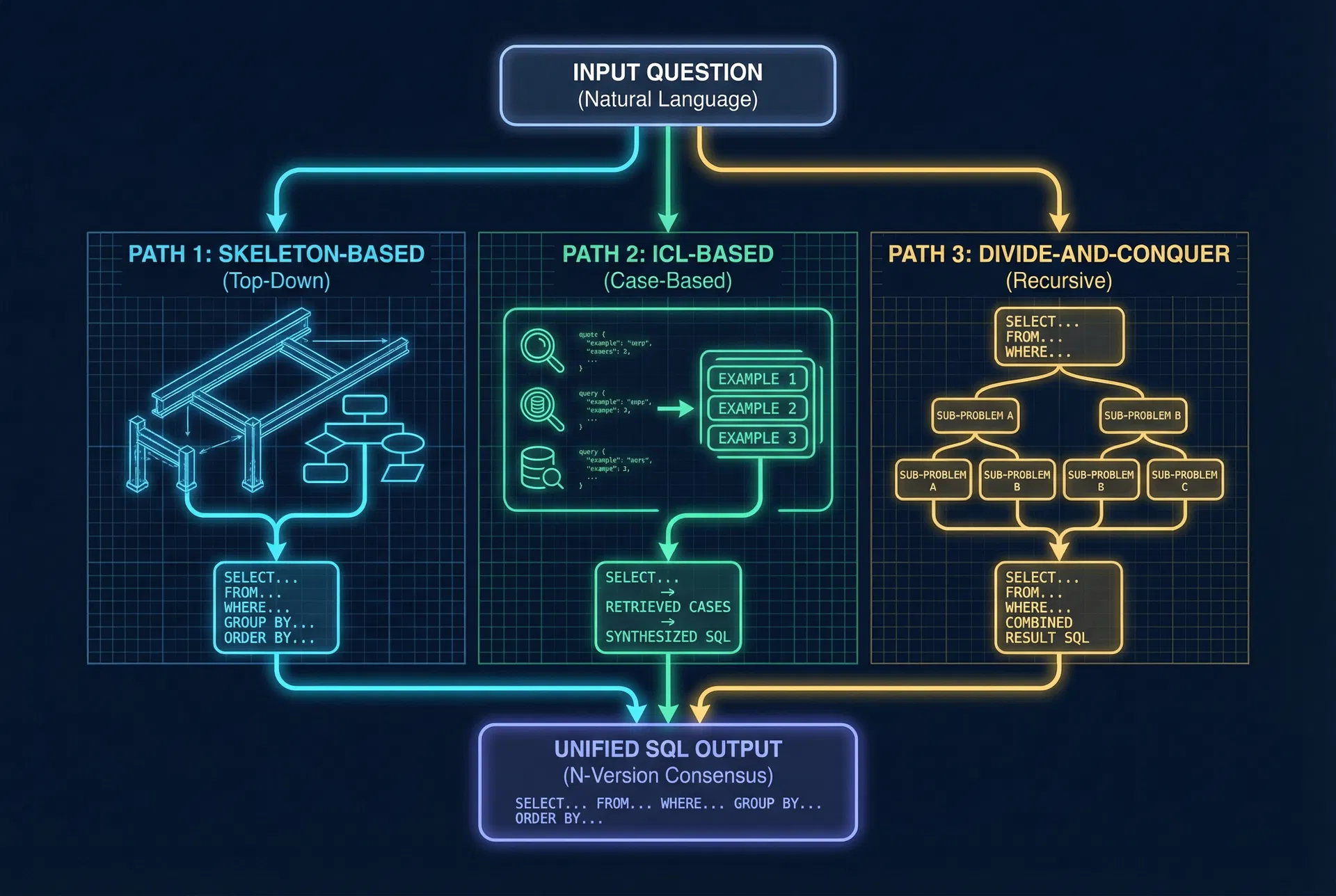

N-Version Programming for SQL Generation

In safety-critical software, N-version programming uses multiple independent teams to build the same system. DeepEye-SQL applies this principle: three fundamentally different SQL generators work in parallel on the same question, producing diverse candidate solutions that avoid correlated failures.

Input Question

"Find the top 3 departments with the highest average salary"

Skeleton-based

Top-Down Design

Why N-Version, Not Self-Consistency?

Self-consistency randomly samples from the same generator, producing correlated errors. N-version programming uses fundamentally different reasoning paradigms, so failures are independent — a critical distinction for fault tolerance.

Generated SQL

SELECT d.name,
       AVG(e.salary) AS avg_sal
FROM employees e
JOIN departments d
  ON e.dept_id = d.id
GROUP BY d.name
ORDER BY avg_sal DESC
LIMIT 3

All Three Outputs

Skeleton-based—Uses alias: avg_sal

ICL-based—Uses full table names

Divide & Conquer—Uses alias: department, avg_salary

Same semantics, different syntax — diversity by design.

PHASE 3 — TESTING

Phase 3Unit Testing

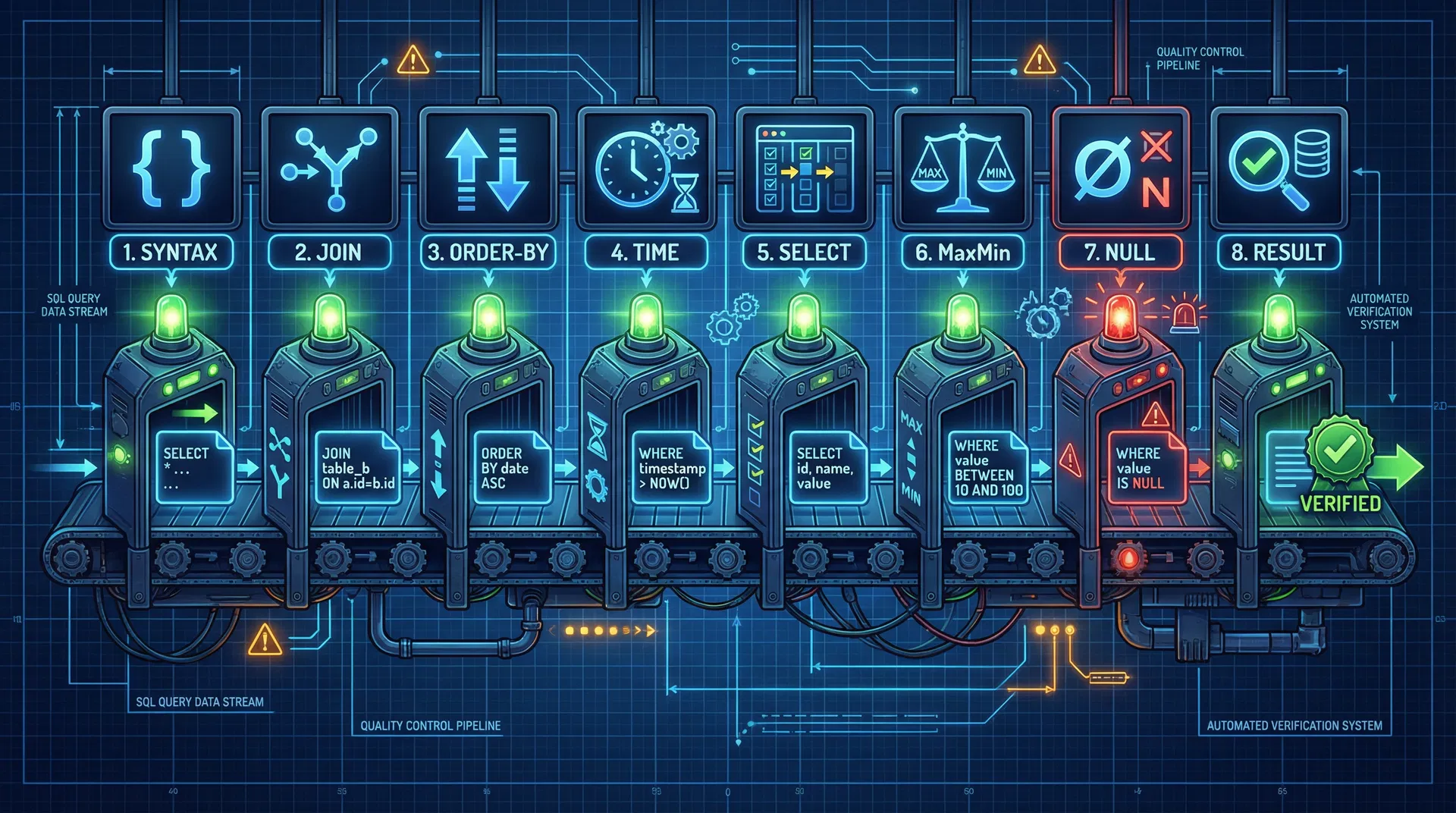

SQL Unit Testing & Revision via Tool-Chain

Just as software undergoes rigorous unit testing, each SQL candidate passes through a chain of 8 deterministic checkers. Unlike LLM-based self-refinement, these checkers use rule-based logic to catch specific bug patterns — producing actionable bug reports that guide targeted fixes.

Fail-Fast

Logic

Quality

Click any checker to see a real example

Deterministic vs. LLM Self-Refinement

Traditional approaches ask the LLM to "check its own work" — but LLMs often repeat the same mistakes. DeepEye-SQL's checkers use deterministic rules (schema metadata, execution results, SQL parsing) to produce precise bug reports. The LLM only handles the targeted fix, not the diagnosis.

PHASE 4 — RELEASE

Phase 4Release & Quality Gate

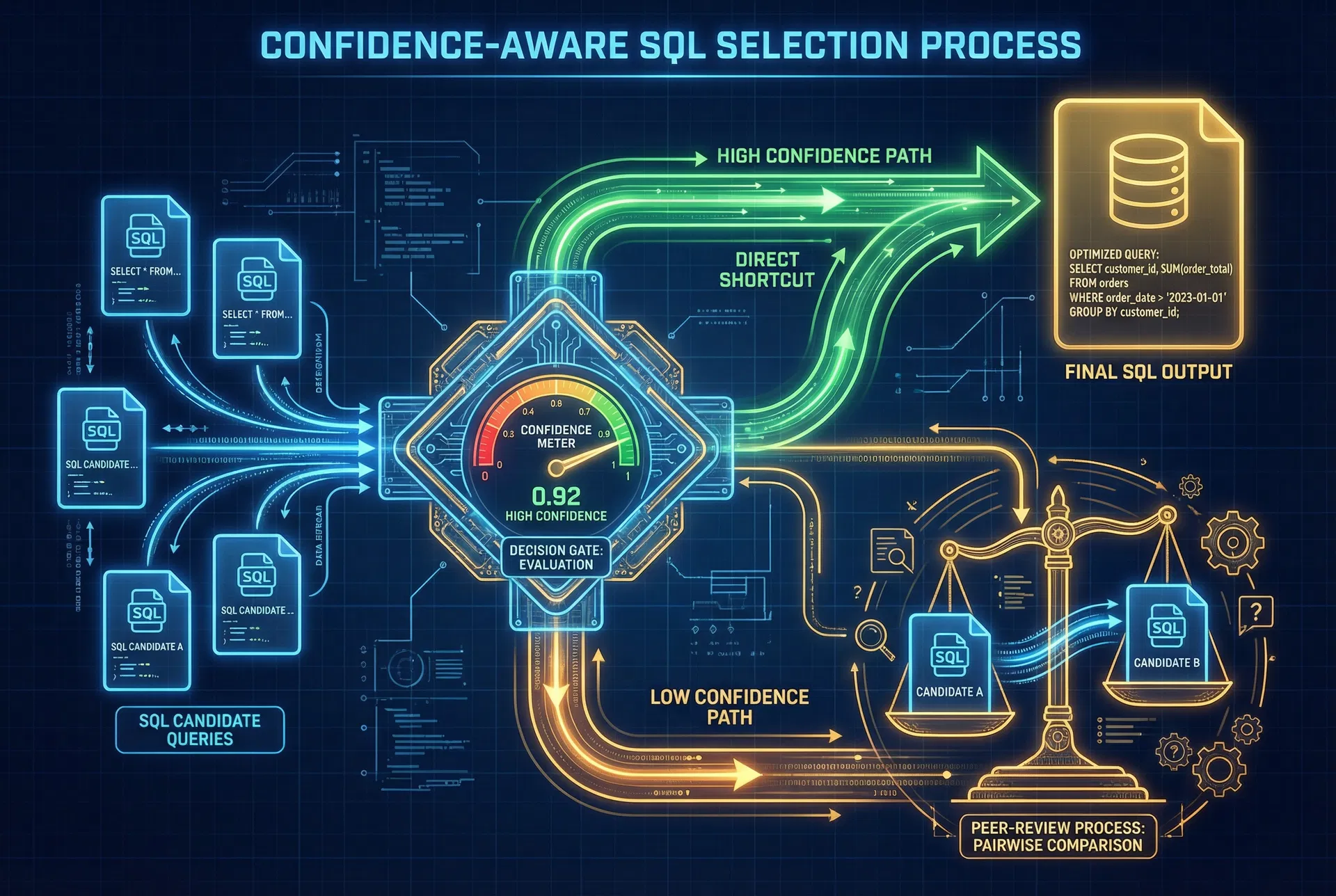

Confidence-Aware SQL Selection

A software product is not released just because it compiles — it must pass a Quality Gate. DeepEye-SQL applies this principle through confidence-aware selection: execute all candidates, cluster by results, estimate confidence, and adaptively choose between a fast shortcut (high confidence) or rigorous peer review (low confidence).

Execute all SQL candidates against the database and group them by their execution results. Queries producing identical results belong to the same cluster.

6 SQL Candidates

S1(Skeleton)C1

SELECT d.name, AVG(e.salary) FROM employees e JOIN departments d ON e.dept_id=d.id GROUP BY d.name ORDER BY AVG(e.salary) DESC LIMIT 3

S2(ICL)C1

SELECT departments.name, AVG(employees.salary) FROM employees INNER JOIN departments ON employees.dept_id=departments.id GROUP BY departments.name ORDER BY 2 DESC LIMIT 3

S3(D&C)C1

SELECT dep.name, AVG(emp.salary) AS avg_sal FROM employees emp JOIN departments dep ON emp.dept_id=dep.id GROUP BY dep.name ORDER BY avg_sal DESC LIMIT 3

S4(Skeleton-v2)C1

SELECT d.name, AVG(e.salary) avg_salary FROM employees e, departments d WHERE e.dept_id=d.id GROUP BY d.name ORDER BY avg_salary DESC LIMIT 3

S5(ICL-v2)C2

SELECT d.name, SUM(e.salary)/COUNT(*) FROM employees e JOIN departments d ON e.dept_id=d.id GROUP BY d.name ORDER BY 2 DESC LIMIT 3

S6(D&C-v2)C2

SELECT department_name, AVG(salary) FROM emp_view GROUP BY department_name ORDER BY AVG(salary) DESC LIMIT 3

Execution Result Clusters

Cluster 14 queries

[(Engineering, 95000), (Sales, 82000), (Marketing, 78000)]

67% of candidates

Cluster 22 queries

[(Engineering, 95000), (Sales, 82000), (HR, 75000)]

33% of candidates

RESULTS

EXPERIMENTAL RESULTS

State-of-the-Art Performance

DeepEye-SQL achieves top results on major Text-to-SQL benchmarks using only a ~3B active parameter open-source model, surpassing methods that rely on much larger proprietary models.

75.07%

BIRD-Test (Official Leaderboard)

#1 Open-Source

73.5%

BIRD-Dev Execution Accuracy

89.8%

Spider-Test Execution Accuracy

BIRD-Dev Execution Accuracy (%)

XiYan-SQL

73.3%

GPT-4o + Qwen2.5 (>200B)

CHASE-SQL

73%

Gemini-1.5-Pro (>200B)

Alpha-SQL

69.7%

Qwen2.5-Coder-32B (~32B)

CHESS

68.3%

Gemini-1.5-Pro (>200B)

DeepEye-SQL~3B active

73.5%

Spider-Test Execution Accuracy (%)

XiYan-SQL

89.7%

GPT-4o + Qwen2.5 (>200B)

CHASE-SQL

87.6%

Gemini-1.5-Pro (>200B)

DeepEye-SQL~3B active

89.8%

Efficient

Uses a MoE model with ~30B total but only ~3B activated parameters. No fine-tuning required — purely inference-time techniques.

Competitive

Outperforms methods using GPT-4o, Gemini 1.5 Pro, and other proprietary models with 200B+ parameters on both benchmarks.

Training-Free

Unlike data-centric approaches (OmniSQL) that require expensive SFT, DeepEye-SQL works out-of-the-box with any capable open-source LLM.

ABLATION STUDY

Every Component Matters

Ablation study on BIRD-Dev with Qwen3-Coder-30B-A3B (Table 10 from paper). Click each variant to see its impact on the final accuracy.

BIRD-Dev Execution Accuracy

73.5%

Variant

Phase

EX (%)

Δ (%)

DeepEye-SQL

Complete framework with all components

All

73.5

—

w/o Semantic Value Retrieval

Remove semantic value retrieval from Phase 1

Phase 1

71.4

-2.1

w/o Robust Schema Linking

Use direct linking only, remove reversed & value-based linking

Phase 1

71.8

-1.7

w/o Skeleton-based Generation

Remove skeleton-based generator from N-version programming

Phase 2

72.2

-1.3

w/o ICL-based Generation

Remove in-context learning generator from N-version programming

Phase 2

-2.5

w/o D&C-based Generation

Remove divide-and-conquer generator from N-version programming

Phase 2

72.3

-1.2

w/o Tool-Chain Testing & Revision

Remove deterministic checkers, rely on LLM self-refinement

Phase 3

71.4

-2.1

w/o Confidence-aware Selection

Replace with majority voting instead of confidence-aware selection

Phase 4

72.7

-0.8

Key Takeaway

ICL-based Generation (Phase 2) and Tool-Chain Testing & Revision (Phase 3) each contribute the largest single improvement of -2.5% and -2.1% respectively. Semantic Value Retrieval (Phase 1) also shows a significant -2.1% drop when removed. This confirms that the SDLC-inspired design creates complementary components where each phase addresses different failure modes.
